tutorial membuat aplikasi bucin menggunakan listView di eclipse

deskripsi: aplikasi isi menggunakan aplikasi eclipse dengan layout Login, daftar genre musik, daftar band, dan isi  menggunakan listView.

ada pun contoh tampilan Login seperti gambar di bawah ini:

dan di bawah ini sourch untuk .xml nya

activity_main.xml

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

    xmlns:tools="http://schemas.android.com/tools"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:orientation="vertical"

    tools:context=".MainActivity" >

    <TextView

        android:id="@+id/textView1"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:text="@string/txtUser"

        android:textAppearance="?android:attr/textAppearanceMedium" />

    <EditText

        android:id="@+id/editUser"

        android:layout_width="match_parent"

        android:layout_height="wrap_content"

        android:ems="10" >

        <requestFocus />

    </EditText>

    <TextView

        android:id="@+id/textView2"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:text="Password"

        android:textAppearance="?android:attr/textAppearanceMedium" />

    <EditText

        android:id="@+id/editPassword"

        android:layout_width="match_parent"

        android:layout_height="wrap_content"

        android:ems="10"

        android:inputType="textPassword" />

    <Button

        android:id="@+id/btnlogin"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_alignRight="@+id/editText1"

        android:layout_below="@+id/editText2"

        android:layout_marginTop="16dp"

        android:text="Login" />



</LinearLayout>

setelah Layout Login selesai, selanjutnya buat sourch di .java seperti di bawah ini:

MainActivity.java

package com.example.azis_161021450027;

import android.os.Bundle;

import android.os.Bundle;

import android.app.Activity;

import android.view.Menu;

import android.view.View;

import android.view.View.OnClickListener;

import android.widget.Button;

import android.widget.EditText;

import android.widget.Toast;

public class Login extends Activity implements OnClickListener{

EditText editUser;

EditText editPass;

Button btnLogin;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

editUser = (EditText) findViewById(R.id.editUser);

        editPass = (EditText) findViewById(R.id.editPassword);

        btnLogin = (Button) findViewById(R.id.btnlogin);



        Button pindah1;

}

@Override

public boolean onCreateOptionsMenu(Menu menu) {

// Inflate the menu; this adds items to the action bar if it is present.

getMenuInflater().inflate(R.menu.activity_main, menu) ;

return true;

}

@Override

public void onClick(View v) {

// TODO Auto-generated method stub

if (v == btnLogin ){

if(editUser.getText().toString().equals("AZIS")&&

editPass.getText().toString().equals("admin")){

Toast.makeText(getApplicationContext(), "login Sukses", Toast.LENGTH_SHORT).show();

}else{

Toast.makeText(getApplicationContext(), "login gagal", Toast.LENGTH_SHORT).show();

}

}

}

private Object Login(String string, int lengthShort) {

// TODO Auto-generated method stub

return null;

}

}

selanjutnya buat activity untuk menu

activity_menu.xml

<?xml version="1.0" encoding="utf-8"?>

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

    android:layout_width="match_parent"

    android:layout_height="match_parent"



    android:orientation="vertical" >

    <ListView

       android:id="@+id/listView1"

       android:layout_width="wrap_content"

       android:layout_height="wrap_content">

</ListView>



</RelativeLayout>

activity_menu.java

package com.example.azism161021450027;

import android.os.Bundle;

import android.app.Activity;

import android.content.Intent;

import android.view.Menu;

import android.view.MenuItem;

import android.view.View;

import android.widget.AdapterView;

import android.widget.ArrayAdapter;

import android.widget.ListView;

import android.widget.Toast;

public class MenuActivity extends Activity {

 ListView LV;

 String [] Menu={"GOMBALAN","PUISI","KATA KATA","GALAU","BUCIN", "UCAPAN", "MAIN", "DEKATI", "HAYATI", "LogOut"};

    @Override

    protected void onCreate (Bundle savedInstanceState) {

        super.onCreate (savedInstanceState);

        setContentView(R.layout.activity_menu);



        LV=(ListView) findViewById(R.id.listView1);



        ArrayAdapter adapsi=new ArrayAdapter(this,android.R.layout.simple_list_item_single_choice,Menu);

        LV.setAdapter(adapsi);

        LV.setOnItemClickListener(new AdapterView.OnItemClickListener() {





   @Override

   public void onItemClick(AdapterView<?> arg0, View arg1, int itemKe,

     long arg3) {

    // TODO Auto-generated method stub

    String itemText=(String) LV.getItemAtPosition(itemKe);

    Toast.makeText(getBaseContext(), "Anda Meng Klik " +itemText, Toast.LENGTH_LONG).show();

    if(itemText.equals("PUISI")){

     Intent I=new Intent(arg0.getContext(),Rock.class);

     startActivityForResult(I, 0);



    } else if(itemText.equals("GOMBALAN")){

     Intent Pop=new Intent(arg0.getContext(),Pop.class);

     startActivityForResult(Pop,0);



    }else if(itemText.equals("KATA KATA")){

     Intent dangdut=new Intent(arg0.getContext(),Dangdut.class);

     startActivityForResult(dangdut,0);



    }else if(itemText.equals("GALAU")){

     Intent campursari=new Intent(arg0.getContext(),Campursari.class);

     startActivityForResult(campursari,0);

    }else if (itemText.equals("BUCIN")){

     Intent Log=new Intent(arg0.getContext(),MainActivity.class);

     startActivityForResult(Log,0);

    }



   }

  });



    }

 @Override

 public boolean onOptionsItemSelected(MenuItem item) {

  // Handle action bar item clicks here. The action bar will

  // automatically handle clicks on the Home/Up button, so long

  // as you specify a parent activity in AndroidManifest.xml.



  return super.onOptionsItemSelected(item);

 }

}

Tampilan gombalan

gombalan.java

package com.example.azism161021450027;

import android.os.Bundle;

import android.view.Menu;

import android.view.MenuItem;

import android.view.*;

import android.view.View;

import android.app.Activity;

import android.content.Intent;

import android.widget.*;

public class Pop extends Activity {

  @Override

     protected void onCreate (Bundle savedInstanceState) {

         super.onCreate (savedInstanceState);

         setContentView(R.layout.activity_pop);





  }



  @Override

  public boolean onOptionsItemSelected(MenuItem item) {

   // Handle action bar item clicks here. The action bar will

   // automatically handle clicks on the Home/Up button, so long

   // as you specify a parent activity in AndroidManifest.xml.

   int id = item.getItemId();





   return super.onOptionsItemSelected(item);

  }

}

gombalan.xml

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

    android:id="@+id/RelativeLayout1"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:orientation="vertical" >

    <TextView

        android:id="@+id/textView1"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_alignParentLeft="true"

        android:layout_alignParentTop="true"

        android:layout_marginTop="24dp"

        android:text="DUDUKLAH BERSAMA KU KAN KUCERITAKAN SEMUA KECUALI PERPISAHAN"

        android:textAppearance="?android:attr/textAppearanceLarge" />

    <Gallery

        android:id="@+id/gallery1"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_alignLeft="@+id/ratingBar1"

        android:layout_alignTop="@+id/ratingBar1" />

    <RatingBar

        android:id="@+id/ratingBar1"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_alignParentBottom="true"

        android:layout_centerHorizontal="true"

        android:layout_marginBottom="14dp" />

    <Gallery

        android:id="@+id/gallery2"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_alignRight="@+id/ratingBar1"

        android:layout_below="@+id/textView3"

        android:layout_marginRight="90dp" />

    <TextView

        android:id="@+id/textView3"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_alignParentLeft="true"

        android:layout_below="@+id/textView2"

        android:layout_marginTop="38dp"

        android:text="FAKTANYA KITA TAK BENAR BENAR SALING MELUPAKAN HANYA MENJAGA JARAK AGAR TAK SALING MERINDUKAN"

        android:textAppearance="?android:attr/textAppearanceLarge" />

    <TextView

        android:id="@+id/textView2"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_alignParentLeft="true"

        android:layout_below="@+id/textView1"

        android:layout_marginTop="18dp"

        android:text="MAAFKAN AKU YANG SELALU MENGGANGGU MU HANYA URUSAN RINDU "

        android:textAppearance="?android:attr/textAppearanceLarge" />

</RelativeLayout>

dan jangan lupa untuk AndroidManifest.xml nya tambkan activity activity yg ada seperti contoh di bawah

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

    package="com.example.azism161021450027"

    android:versionCode="1"

    android:versionName="1.0" >

    <uses-sdk

        android:minSdkVersion="14"

        android:targetSdkVersion="19" />

    <application

        android:allowBackup="true"

        android:icon="@drawable/ic_launcher"

        android:label="@string/app_name"

        android:theme="@style/AppTheme" >

        <activity

            android:name=".MenuActivity"

            android:label="@string/app_name" >

            <intent-filter>

                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />

            </intent-filter>

        </activity>

        <activity android:name="gombalan"></activity>

        <activity android:name="puisi"></activity>

        <activity android:name="katakata"></activity>

        <activity android:name="renungan"></activity>

        <activity android:name="MainActivity"></activity>

    </application>

</manifest>

berikut contoh hasil running project nya

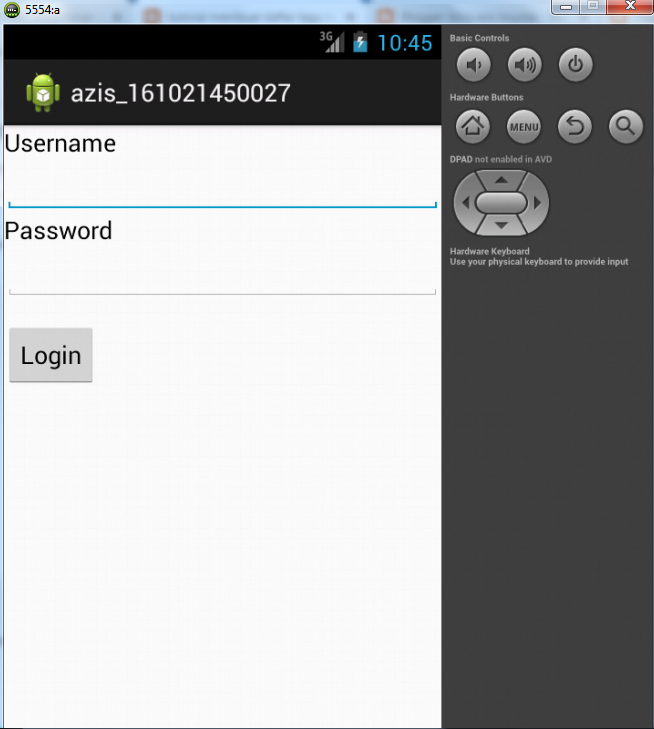

Tampilan awal

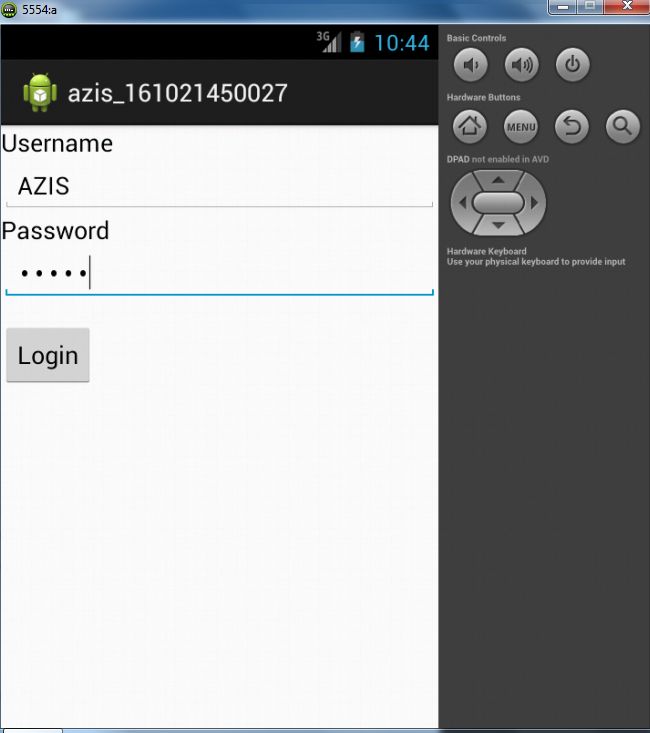

setelah di beri password

tampilan Menu

 dan yang terakhir tampilan dari isi gombalan

Dan selesai Terima Kasih
